Appli Parts APSWR-342 90-342, 208-240 VAC Coil, General Purpose Switching Relay, DPDT, for HVAC applications and other general electrical installations, Replaces APSR-342
$22.29
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by samsunisex.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$22.29
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by samsunisex.com
Free 30-day returns Details
Product details
| Management number | 228385971 | Release Date | 2026/05/31 | List Price | $8.92 | Model Number | 228385971 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Product Feature: Use: For HVAC/R typically used to control the Fan motor in the air handler unit of the Air conditioning system. Can also be used for other electrical applications

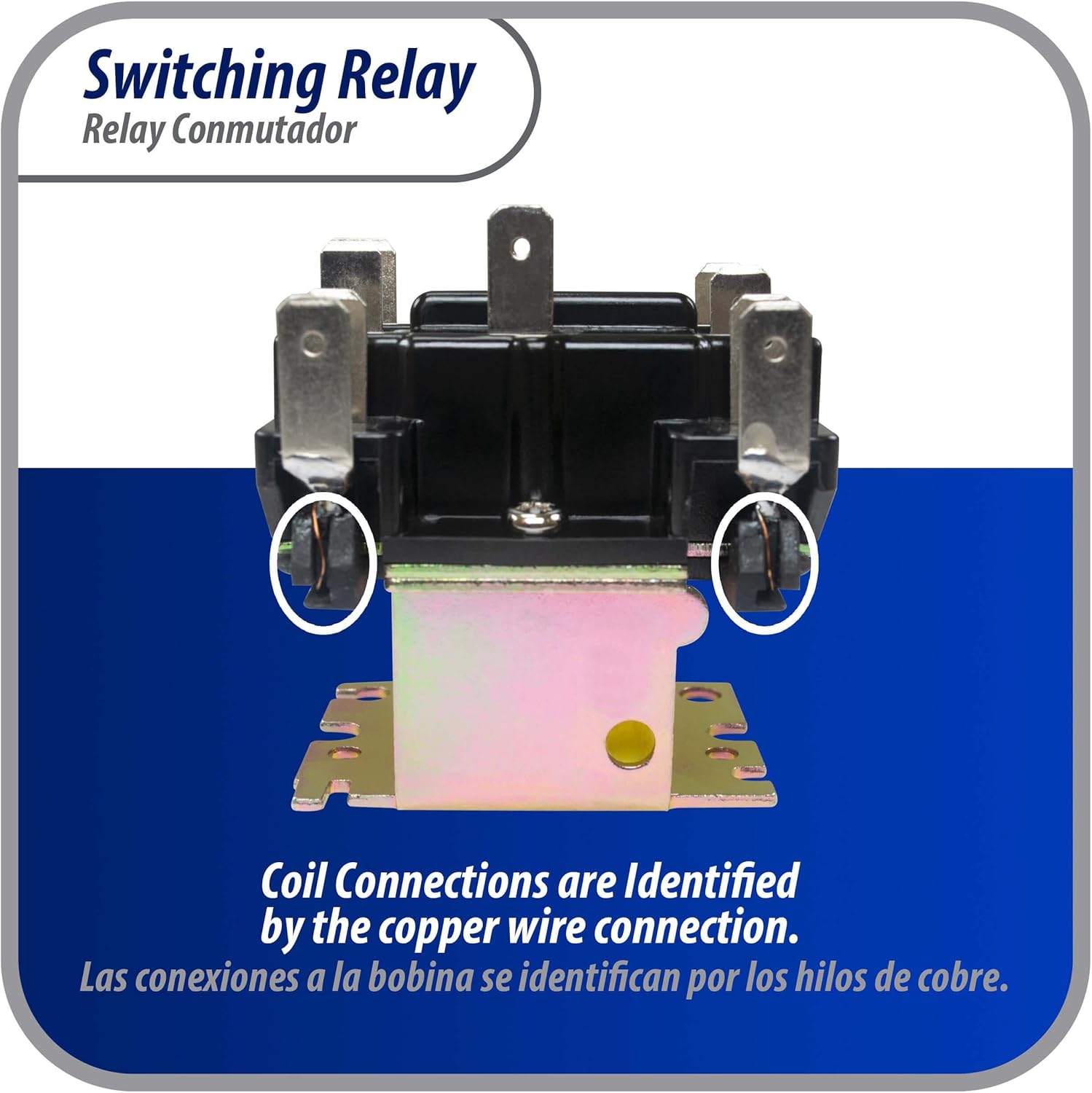

- Product Feature: Details: Coil Voltage is 208-240 Volts. 2 sets of Terminal Power 1-2-3 where 1-3 is NO and 4-5-6 where 4-6 is NO. Double Pole Double Throw Switch. 12 FLA 60 LRA at 125V and 6 FLA 35 LRA at 250V
- Product Feature: Universal: Will Replace any Switching Relay with the same specifications to work with any brand of motor or other electrical applications where needed
- Product Feature: Replaces: This product is a direct replacement for Jard 92342, RBM 90-342, White-Rodgers 90-342, Mars 90342, Honeywell R4222D1021, Supco 90342, Packard PR342, 90-112, Zettler ZC90342, APSR-342
- Product Feature: Multiple Foot mount options
| UPC | 814245027957 |
|---|---|
| ASIN | B01N467J4L |
| Wattage | 1500 watts |
| Brand Name | AP APPLI PARTS |
| Part Number | APSR-342 |
| Coil Voltage | 240 Volts |
| Contact Type | Normally Open |
| Manufacturer | AP APPLI PARTS |
| Mounting Type | Pole |
| Connector Type | Screw |
| Current Rating | 15 Amps |
| Operation Mode | Electrical,Motor |
| Contact Material | Silver |
| Specification Met | OEM |
| Contact Current Rating | 15 Amps |
| Maximum Switching Current | 15 Amps |
| Minimum Switching Voltage | 208 Volts (AC) |
