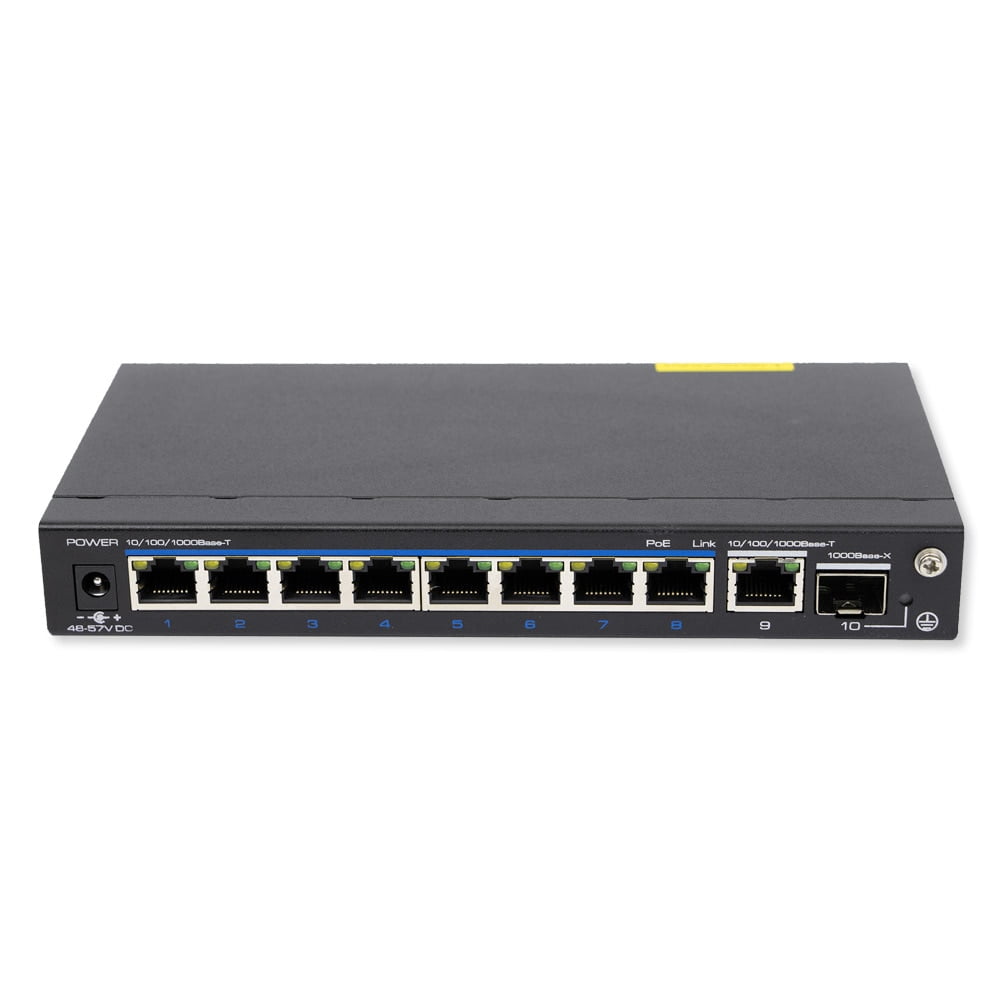

Speco P8S9G 9-Port Gigabit Network Switch

Power and connect up to 9 PoE/PSE devices using the Speco 9-Port Gigabit Network Switch. This Gigabit Ethernet switch delivers power and lightning fast data transfer speeds to up to 8 Ethernet-connected devices. This rack-mounting switch is designed to support medium-to-large data and/or surveillance networks and applications. Each PoE port handles up to 30 Watts of power (max.), with a total power budget of 120 Watts. In addition to its 8 PoE ports, the switch also includes one Gigabit SFP uplink port for easy expansion with new or existing network switches. Specifications: Downlink Ports: 8 x 10/100/1000Base-T (PoE). Uplink Ports: 1 x 10/100/1000BaseT & 1 x 1000Base-X SFP Port. PoE Standards: 802.3af/at (PSE). Exchange Type: Storage & Forwarding. PoE Power Supply: 1/2(+), 3/6(-). Ethernet Standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z. Packet Forwarding Rate: 14Mpps. Switch Capacity: 20GBps. MAC Address: 4K. PoE Output: Single port ≤ 30W (54V DC), Total for all ports ≤ 120W. Operating Temperature: 14 to 131 degrees F (-10 to 55.5 degrees C). Storage Temperature: -40 to 185 degrees F (-40 to 85 degrees C). Operating Humidity (Non-Condensing): 5 to 95 percent RH. Dimensions: 7.9 inches (L) x 4 inches (W) x 1 inches (H). Weight: 1.1 pounds. Protection Level: ESD: Contact Discharge 6K, Air Discharge; 8KV, Per: IEC61000-4-2. Surge Protection: 6KV, Per: IEC 61000- 4- 5. Warranty: 2 Years. Manufacturer Part #: P8S9G.

• Gigabit network switch supports 9 PoE devices
• CCTV mode isolates each port from one another for added security and performance
• Max. 30W power per PoE/PSE port
• Surge-Protection for each individual port
